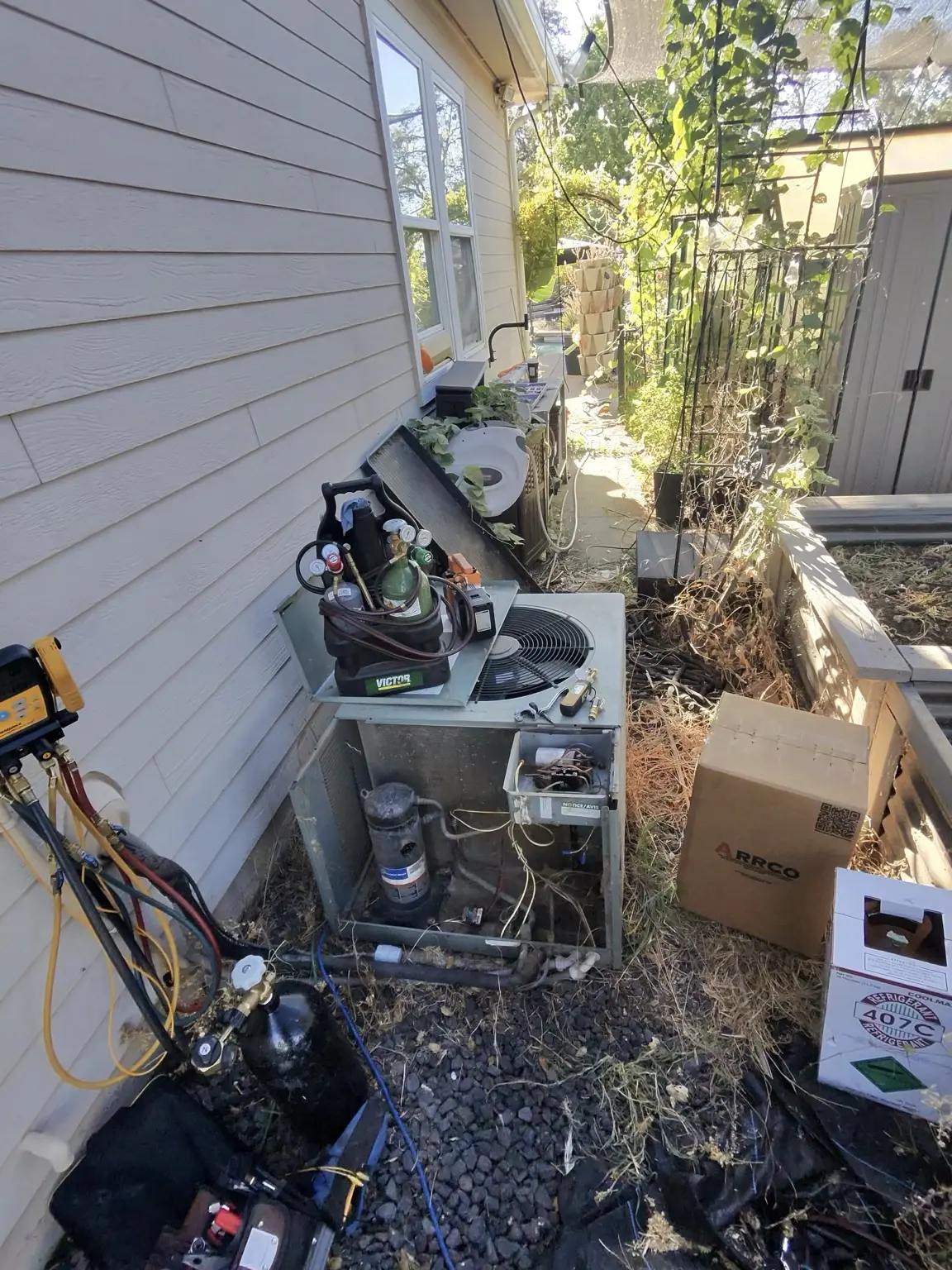

An older air conditioner at a home in Lincoln, CA stopped cooling after the original Copeland compressor failed. A complete HVAC replacement was not necessary for this project, so Fusion Heating & Cooling completed an AC compressor replacement and returned the existing system to reliable operation.
The repair included an ARRCO remanufactured compressor, a new liquid-line filter drier, contactor, capacitor, and an R407C refrigerant retrofit. After installation, the system was evacuated, charged, and fully tested. Final operating pressures, superheat, and subcooling were checked and adjusted after startup.
AC Compressor Replacement in Lincoln, CA
The compressor is the heart of an air-conditioning system. It circulates refrigerant between the indoor and outdoor coils so heat can be removed from the home. When a compressor fails, the outdoor fan may still operate, but the system cannot provide normal cooling.
After confirming the compressor failure, we reviewed the condition of the remaining equipment. Because the rest of the system could remain in service, replacing the compressor was a practical alternative to replacing the entire air conditioner.

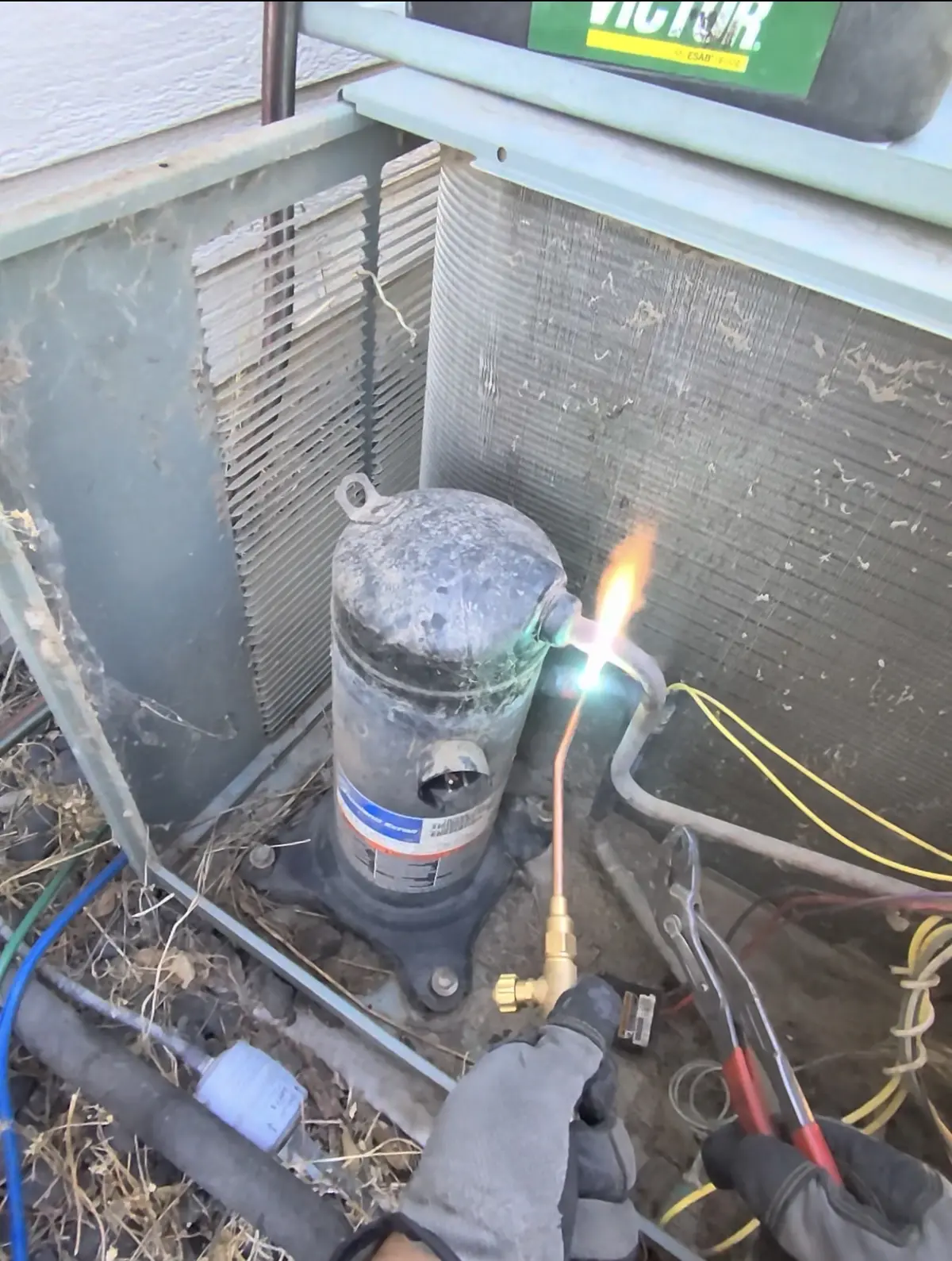

Disconnecting the Failed Compressor
The existing refrigerant was properly recovered before the old compressor was disconnected. The electrical connections and refrigerant lines were then removed so the failed compressor could be taken out safely.

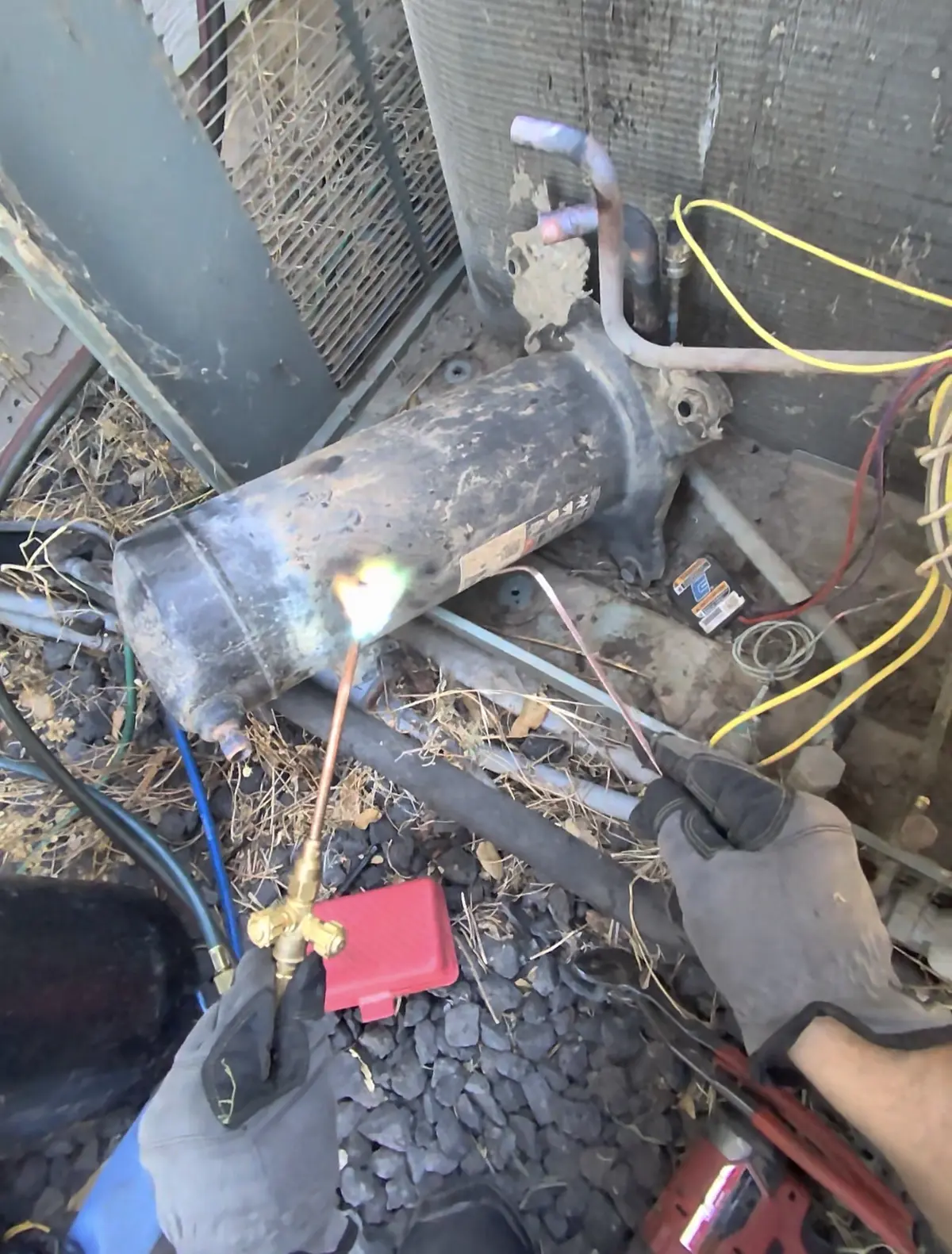

Preparing the Old Compressor for Proper Disposal
After removal, the open compressor connections were sealed. This helps prevent compressor oil from leaking while the old component is stored, transported, and properly disposed of.
Installing the New Refrigerant Components
A compressor replacement involves more than changing the compressor itself. Contamination, moisture, worn electrical parts, or an old filter drier can shorten the life of the replacement compressor. For this Lincoln AC repair, we installed the supporting components needed for a complete repair.

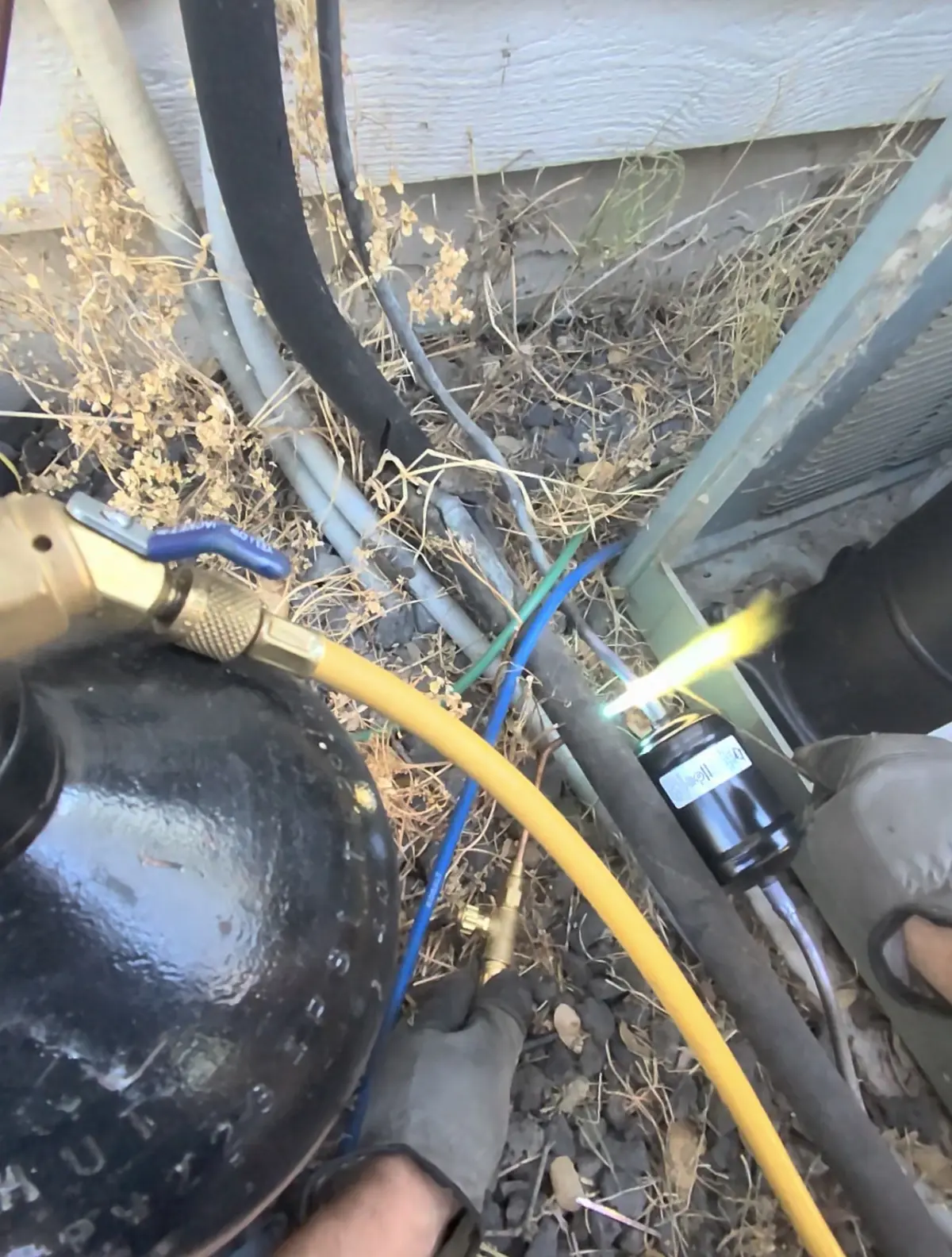

New Liquid-Line Filter Drier
The liquid-line filter drier was replaced to help capture moisture and debris inside the refrigerant circuit. The new drier was brazed into the line as part of the sealed-system repair.

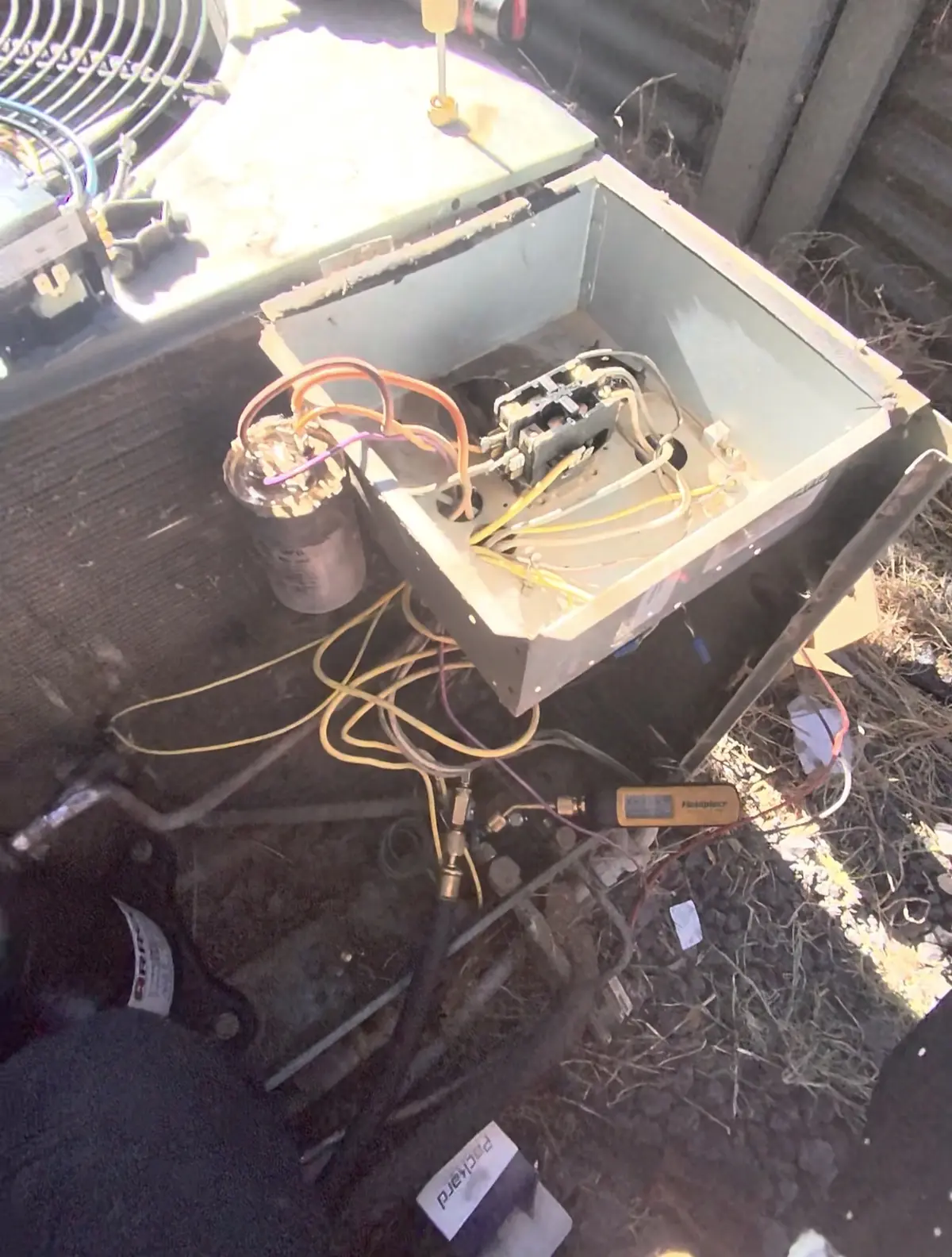

Replacing the Contactor and Capacitor
The old contactor and capacitor were removed and replaced. These electrical components help start and operate the compressor, so installing dependable components protects the new compressor and supports reliable operation.

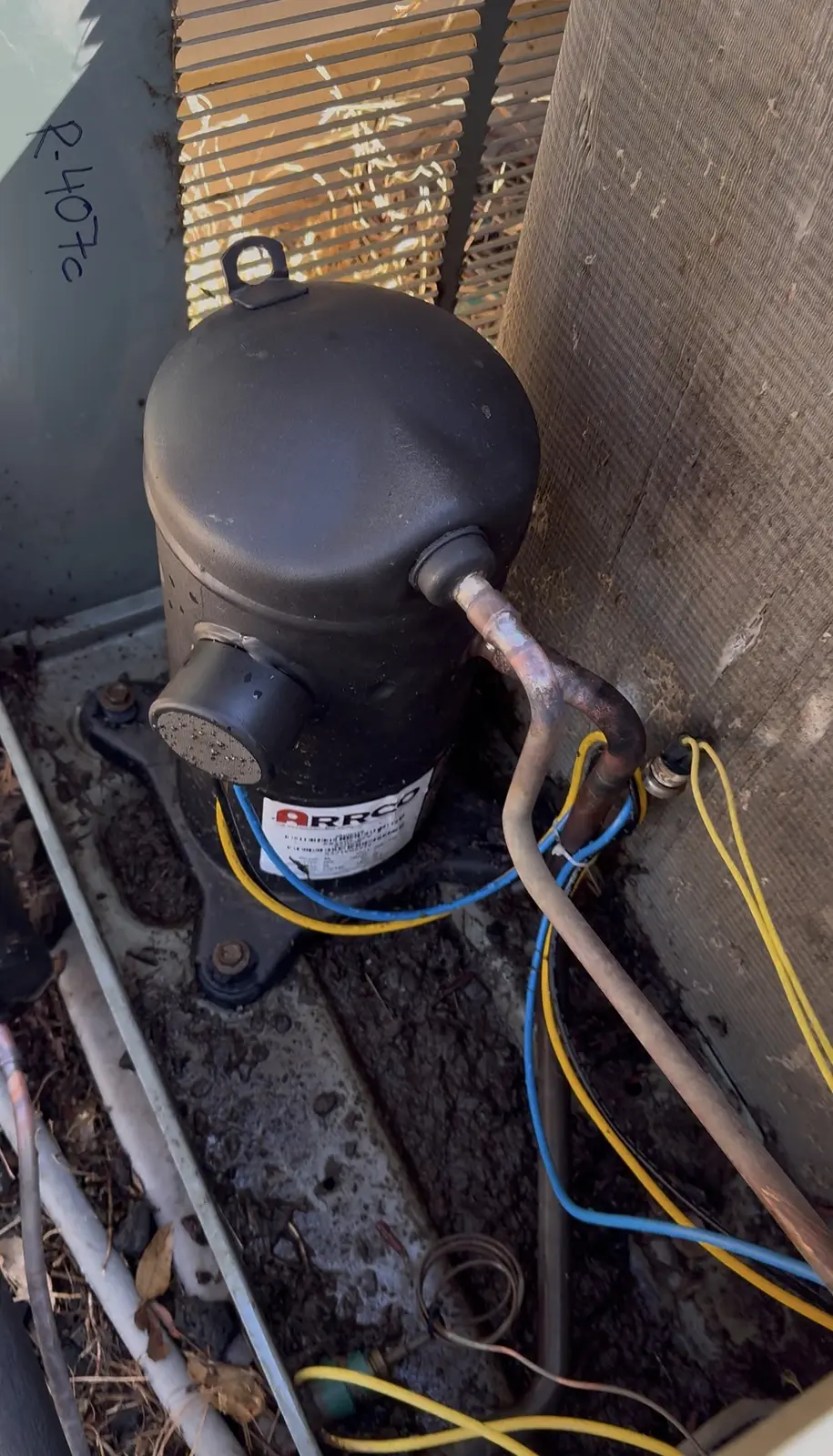

Installing the ARRCO Remanufactured Compressor
A compatible ARRCO remanufactured compressor was installed in place of the failed Copeland compressor. The refrigerant lines were fitted and brazed, and the compressor wiring was connected and secured inside the condenser.

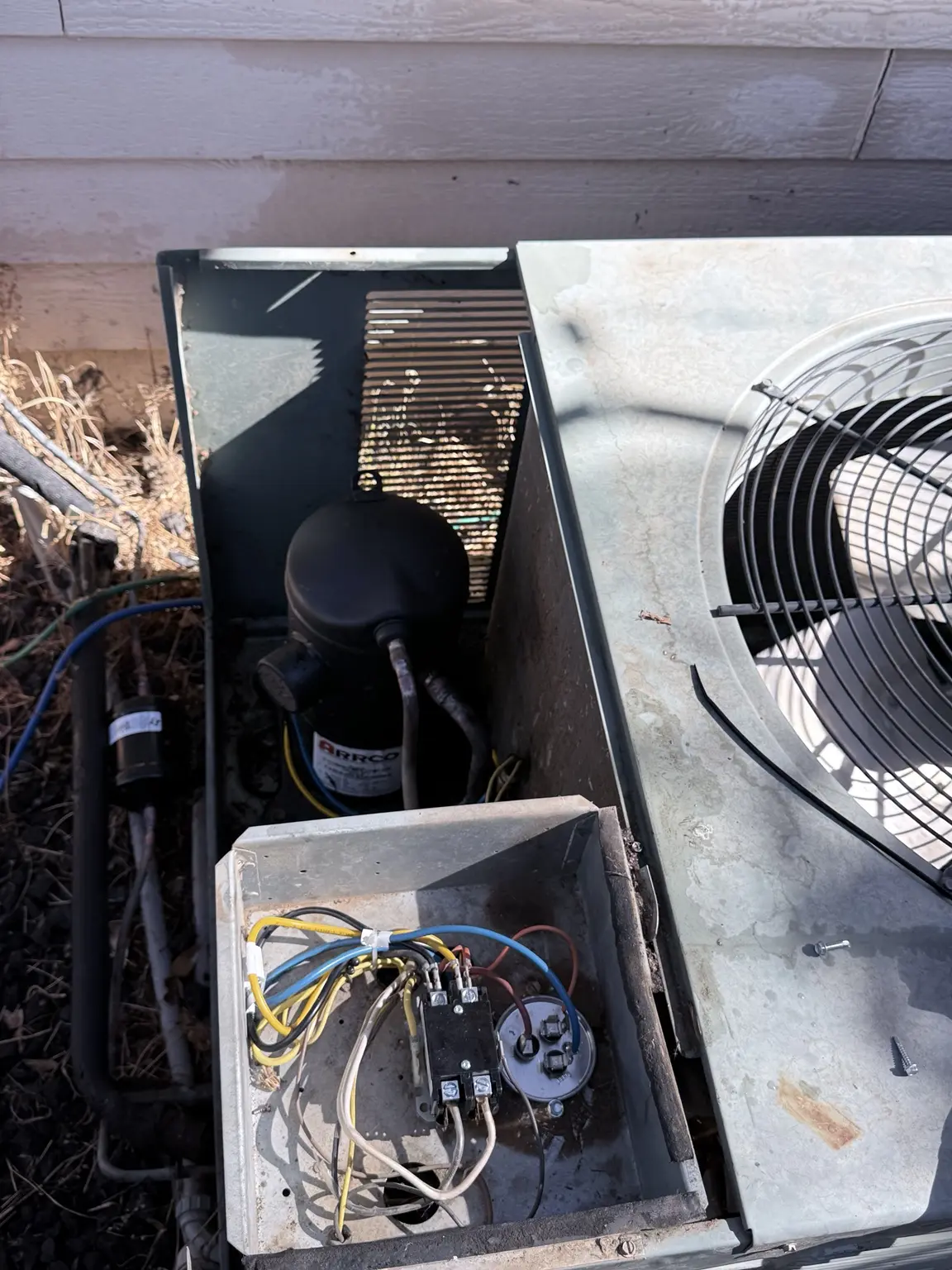

Once the compressor, liquid-line filter drier, contactor, and capacitor were installed, we checked the refrigerant circuit and prepared the system for evacuation and charging.
R407C Refrigerant Retrofit and Final Testing
The repaired system was retrofitted with R407C refrigerant. After completing the sealed-system work, we evacuated the refrigerant circuit to remove air and moisture, charged the system, and performed a complete operational test.

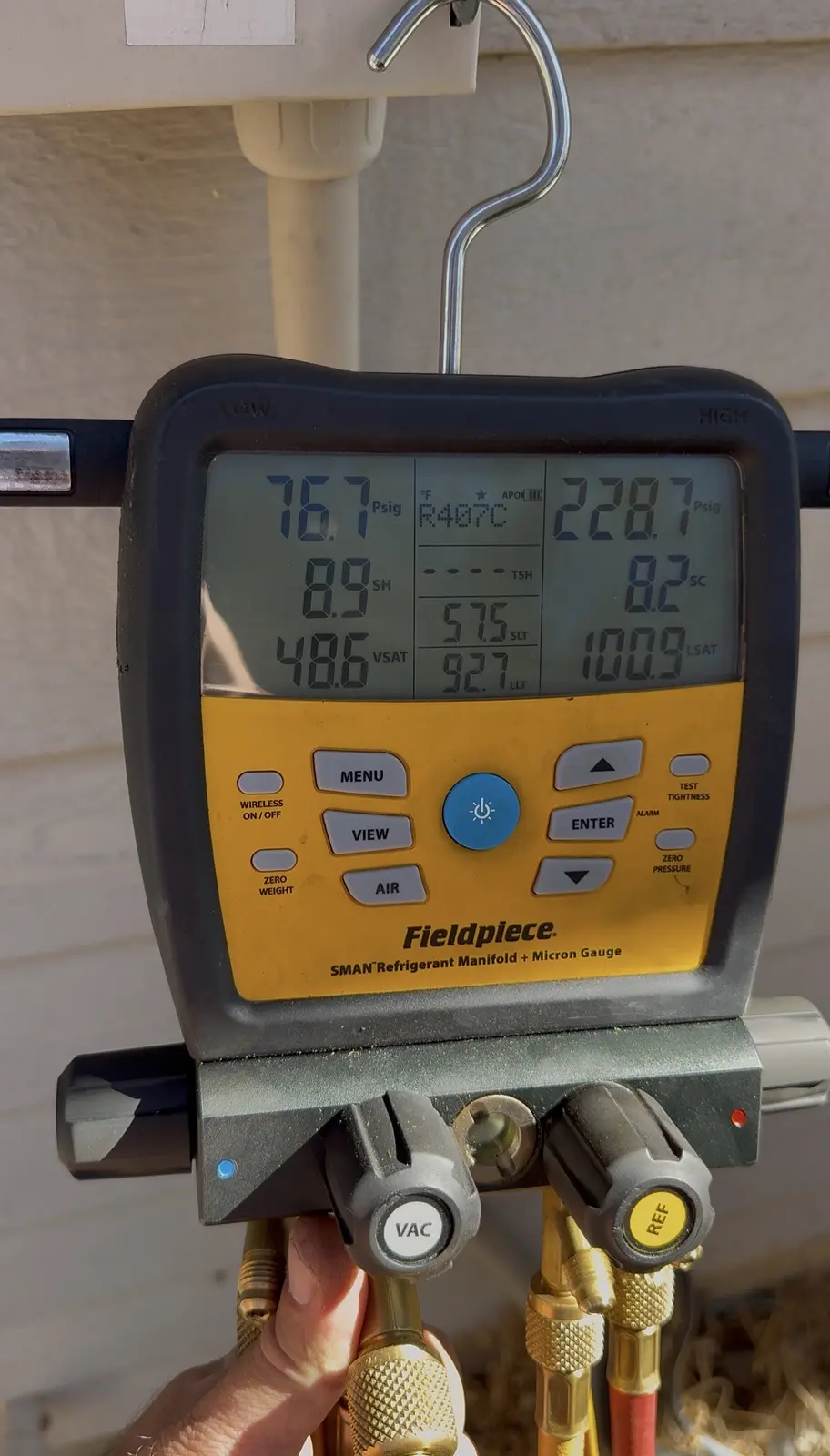

Operating pressures were checked after the air conditioner stabilized. We then verified and adjusted superheat and subcooling so the system would operate correctly under the conditions present at the home.
What Was Replaced
- Failed Copeland compressor
- ARRCO remanufactured replacement compressor
- Liquid-line filter drier
- Contactor
- Capacitor
- R407C retrofit refrigerant
The repair also included refrigerant recovery, brazing, evacuation, charging, electrical reconnection, startup, and complete system testing. The completed compressor replacement is covered by a one-year parts and labor warranty from Fusion Heating & Cooling.
Need AC Compressor Replacement in Lincoln, CA?
A failed compressor does not always mean the entire HVAC system must be replaced. The right solution depends on the age and condition of the equipment, the refrigerant, system compatibility, and the cost of repair compared with replacement.
Fusion Heating & Cooling provides professional AC repair and troubleshooting in Lincoln and throughout the greater Sacramento area. We inspect the system, explain the practical options, and complete compressor replacements without cutting corners.
Call (916) 666-0074 or request service online for AC compressor replacement in Lincoln, CA.
Frequently Asked Questions
Can an AC compressor be replaced without replacing the entire system?
Sometimes. If the remaining equipment is in serviceable condition and compatible with the replacement compressor and refrigerant, compressor replacement may be a practical repair. The full system should be evaluated before deciding.
Why is the liquid-line filter drier replaced with the compressor?
The filter drier helps capture moisture and debris in the refrigerant circuit. Replacing it during sealed-system work helps protect the replacement compressor.
How is a replacement AC compressor tested?
After installation, the refrigerant circuit is evacuated and charged. The technician then checks operating pressures, temperatures, electrical operation, superheat, subcooling, and overall cooling performance.
Do you replace AC compressors in Lincoln?
Yes. Fusion Heating & Cooling provides AC diagnostics, compressor replacement, repairs, and system replacement options for homeowners in Lincoln, California.
